Media Lifters

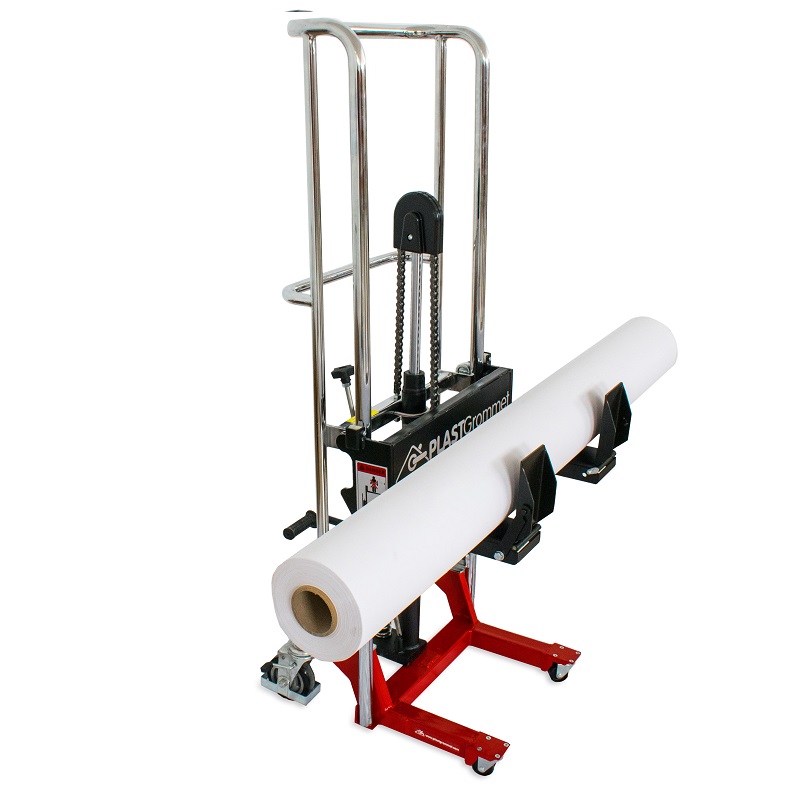

Compact Lifter

Compact hydraulic media lifter

Pressing the footpedal you can easily lift rolls up to 130 cm and 200 kg.

Manual

Compact e-Lifter Lite

Excellent maneuverability

Designed to work in small spaces. Loading capacity 100 kg.

Battery

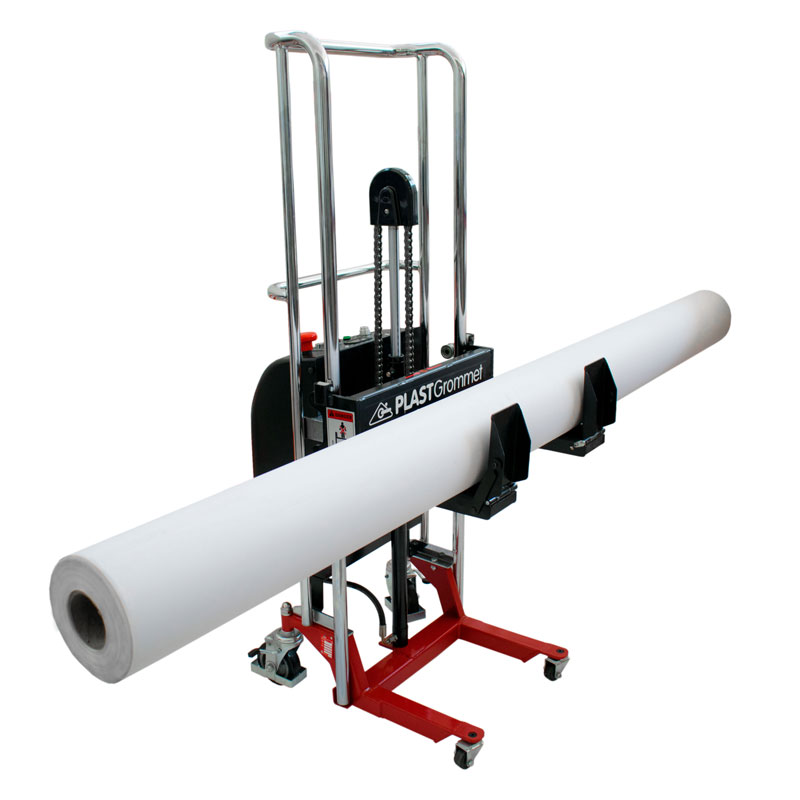

Compact e-Lifter PRO

With a huge loading capacity

Lifts rolls up to 500 cm wide and 300 kg only by pressing up/down controls.

Battery

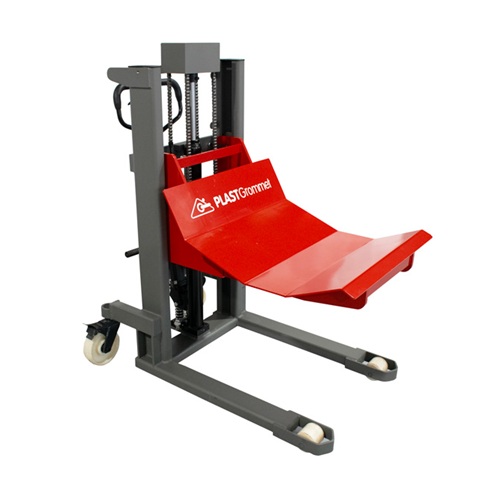

RollMAX Lifter

For large diameter heavy rolls.

Our roll lifter range for large diameter rolls. Loading capacity 450 kg.

Manual

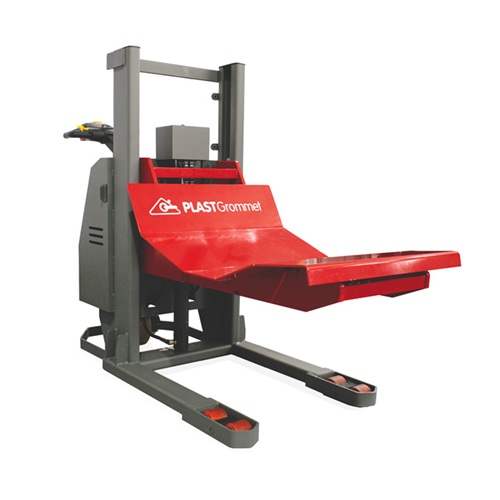

RollMAX e-Lifter

For large diameter heavy rolls.

Our roll lifter range for large diameter rolls. Loading capacity 450 kg.

Battery

Media lifters to feed printers

An essential piece of equipment for every wide format printer. Use our media lifters to avoid back injuries and to load alone media rolls to the printer effortless.

LOAD ROLLS FROM THE GROUND

Load alone heavy media rolls directly from the ground to the printer with no effort.

SAFETY WORK MODE

The ramps raised and act as a stop to prevent material from falling during transport.


Model	Compact e-Lifter Lite	Compact Lifter	Compact e-Lifter Pro	RollMAX Lifter	RollMAX e-Lifter
Operated	Battery	Manual	Battery	Manual	Battery
Loading capacity	100 kg	200 kg	300 kg	450 kg	450 kg
For rolls up to	320 cm	500 cm	500 cm	500 cm	500 cm
Máx. roll Ø	40 cm	26 cm	30 cm	50 cm	50 cm
Lifts up to	135 cm	125 cm	130 cm	138 cm	138 cm
Battery capacity	72 cycles	-	54 cycles	-	54 cycles
Wheels height	12 cm	8 cm	8 cm	12 cm	12 cm

Media lifters for wide rolls

You can easily lift rolls up to 500 cm and 300 kg. Avoid back injuries and to load alone media rolls to the printer effortless.

Media lifters for wide format printers

Our media lifters are designed to facilitate the work of feeding printers. Thanks to the low height of the wheels you can load your printers in the most comfortable way.
